MD1500AW Wireless Dental WiFi Intraoral Camera With Webcam

15 inch monitor cordless intraoral camera system with Wifi & VGA & AV plug.

Model No.: MD-1500AW

Features

• Perfect combination of intraoral camera and monitor.

• With 16G u disk memory.

• Monitor could take picture for patient head with built-in webcam, in order to save files.

• Could compare with quad function.

• It could manage data after connected with computer and play multi-media files in monitor.

• With USB disk storage port and USB disk multi media palyer port.

• With wireless receiver and WIFI port

• Handpiece could freeze, quad, delete, up and down images.

Main Components

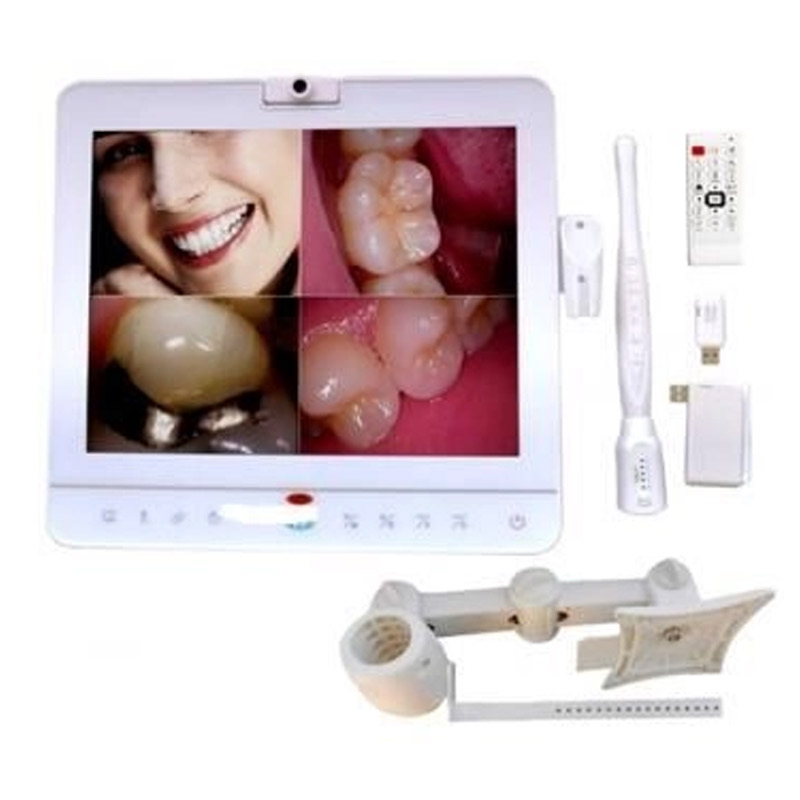

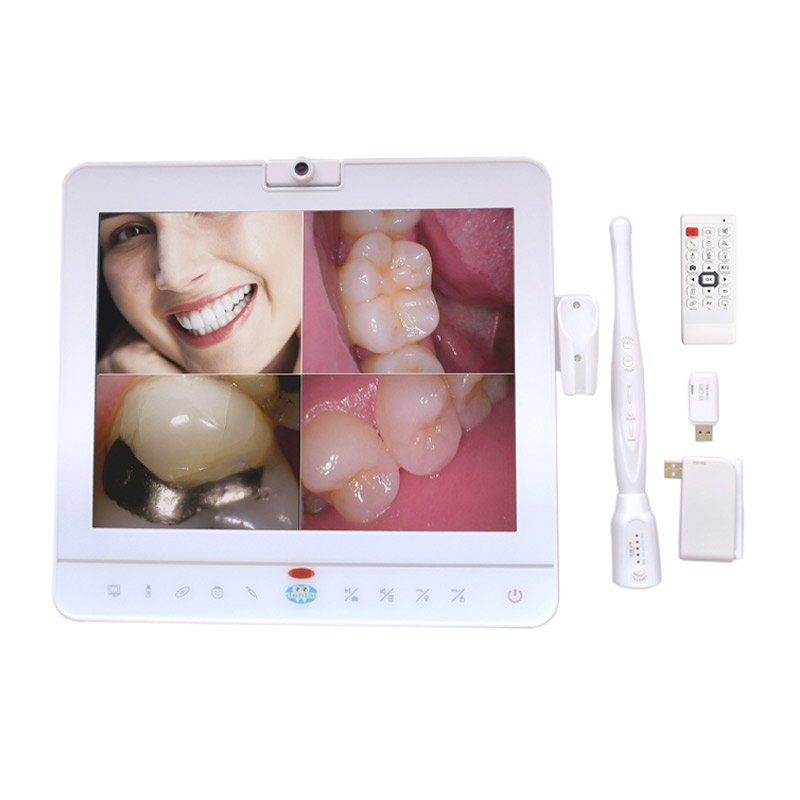

• Integrated All-in-One Dental Monitor: The core is a bright, high-contrast 15-inch LCD display (1024x768) mounted on a mobile stand. It serves as the central hub, natively displaying live feeds from both the wireless intraoral camera and the front-facing patient webcam, eliminating the need for separate screens and computers at every chair.

• Dual-Capture Imaging System:

1. Wireless Intraoral Camera: Features a premium 1/4" Sony CCD sensor (2.0MP) for exceptional diagnostic image quality. It operates on a stable 5.8GHz wireless link (8m range) and includes a handpiece with direct controls (freeze, zoom, delete).

2. Built-in HD Webcam: An integrated front camera captures patient facial photos and video (16.7M pixel effective), perfect for creating comprehensive "before & after" records for cosmetic, surgical, or orthodontic cases.

• Standalone or Connected Workflow Modes:

1. Standalone Mode: Use the system independently. Capture intraoral and facial images/video directly to the included 16GB USB disk. Use the quad-screen or split-screen display to compare views. The handpiece controls the on-screen functions.

2. Connected Mode: Enable WiFi transfer to send captured images wirelessly to your main office computer for direct import into patient software records, bridging the gap between chairside capture and central storage.

• Complete Chairside Multimedia Station: The monitor includes AV & VGA inputs to connect other devices (e.g., scaler, microscope) and can play multimedia files for patient education. It is powered by a rechargeable battery for ~35 minutes of cordless operation, offering ultimate flexibility in operatory layout.

• Enhanced Clinical Efficiency & Presentation: Dramatically improves patient consultation. Simultaneously show a magnified intraoral view and the patient's live facial reaction. Instantly compare "before" and "after" shots in quad view. The professional, integrated appearance builds tremendous patient confidence.

• Display Unit: 15" LCD Monitor with Stand, 1024x768, Built-in Webcam, USB/SD Ports

• Imaging System 1: Wireless Intraoral Camera with Sony CCD Sensor, 5.8GHz, 8m Range

• Imaging System 2: Integrated Front HD Webcam for Facial Photos/Video

• Storage & Connectivity: 16GB USB Disk, WiFi Transfer to PC, AV/VGA Inputs

• Viewing Modes: Quad-Screen / Split-Screen / Full-Screen Display

• Power: Rechargeable Battery (35 min) or AC Adapter

• Control: Handpiece with Image Control Buttons

MD1500AW 15inch Parameter
