YFHD-D+
· High-Resolution Imaging with Large Sensor Clarity: At the heart of the system is a premium 1/2.7" Sony Full HD CMOS sensor, capable of capturing stunning 8.0-megapixel still images. This larger sensor size provides superior light capture, resulting in clearer, more detailed images with better performance in varied lighting conditions, ideal for diagnosing fine cracks, evaluating margins, and documenting soft tissue.
· Wireless Workflow & Built-In Multimedia Hub: Streamline your digital workflow with integrated WiFi, allowing you to wirelessly transfer captured images and videos directly to your office computer for immediate filing into patient records. The system also functions as a standalone media player, enabling you to play educational videos, showcase before/after galleries, or present practice information directly from a USB drive on the 17-inch screen—no external PC required.
· Complete Chairside Capture & Review Station: Designed for efficiency, the system allows you to capture both high-resolution still images and record video of procedures. Review your work instantly using the quad-screen display function to compare up to four images side-by-side. The front glass panel protects the screen while allowing for easy cleaning.
· Simplified Data Management & Archiving: All media is saved directly to a standard USB flash drive, providing a simple, portable archive. You can then either copy files manually to a computer or use the convenient WiFi transfer for a cable-free experience. This dual approach offers maximum flexibility for organizing and backing up patient data.

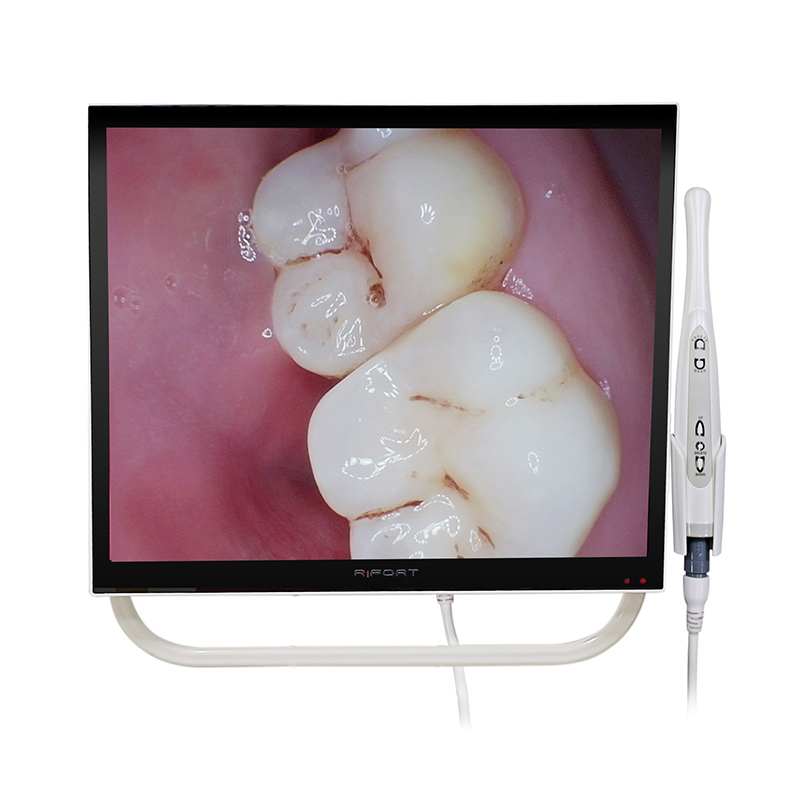

· Professional, User-Friendly Design: The system integrates a bright 17-inch 4:3 LCD screen, perfect for dental imaging, with 12 high-power white LEDs for optimal intraoral illumination. Its intuitive operation makes it easy for all team members to use for enhanced diagnostics, patient communication, and clinical training.

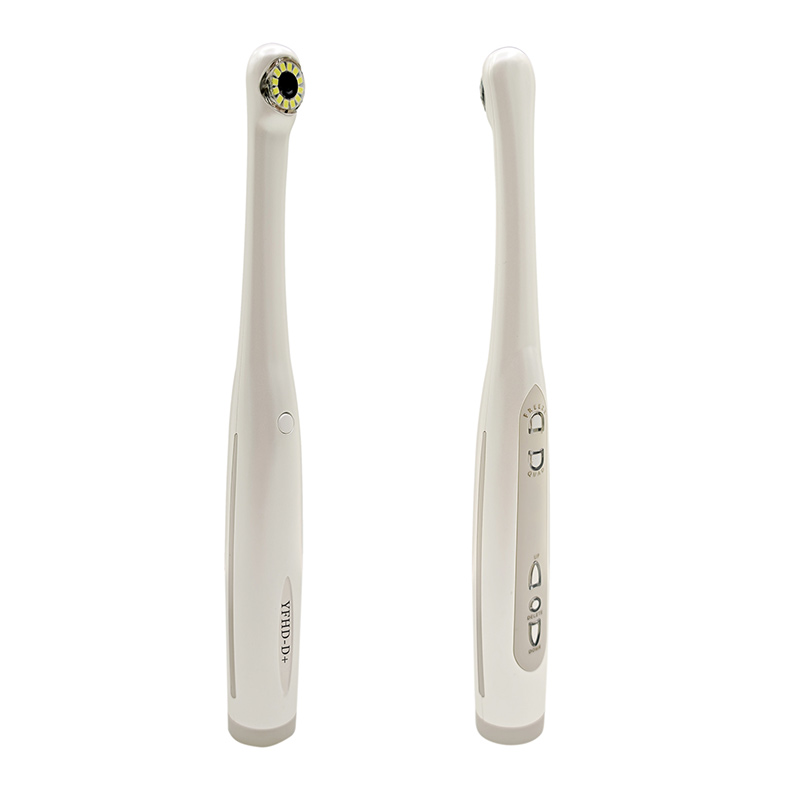

· Imaging Core: 8.0 Megapixel, 1/2.7" Sony CMOS Sensor Camera

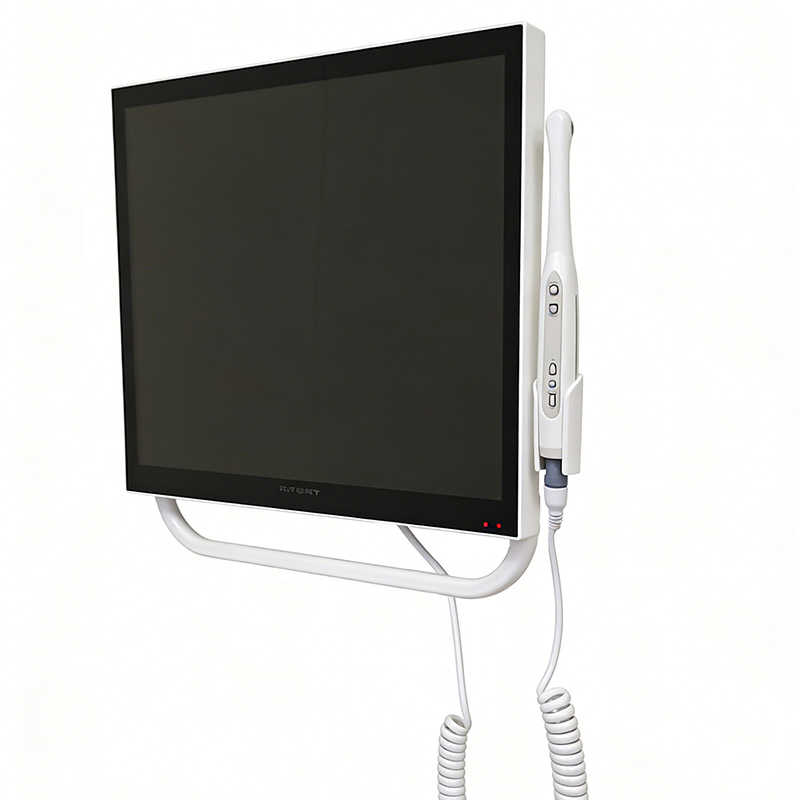

· Display: 17-inch 4:3 LCD Monitor with Protective Glass
· Connectivity: Built-in WiFi for Wireless File Transfer to PC
· Multimedia: USB Media Player (Video/Music/Photo Playback)
· Capture Modes: High-Resolution Still Image & Video Recording

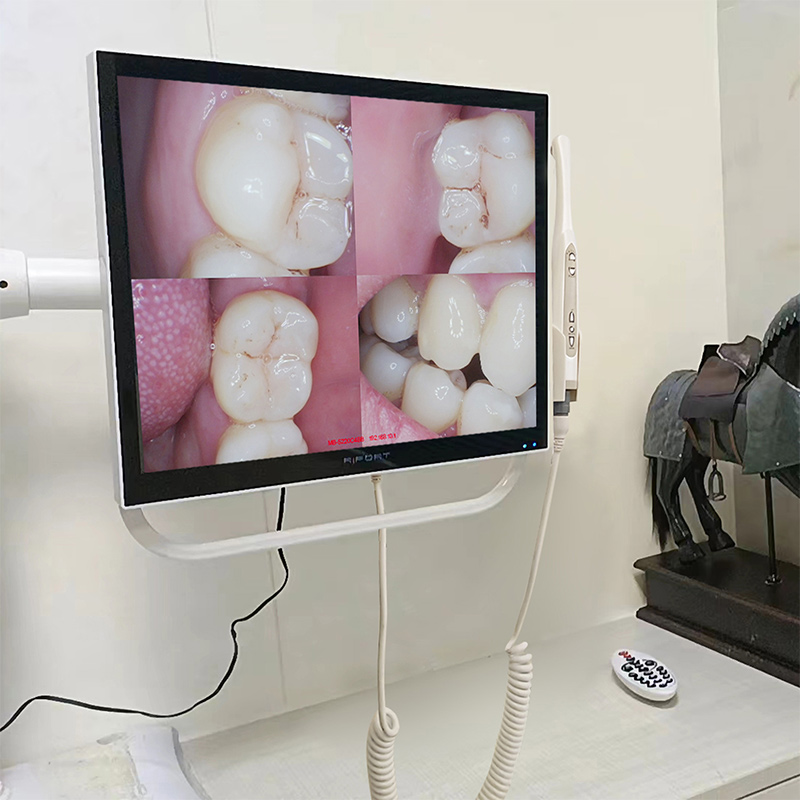

· Viewing: Single and Quad-Screen Display Modes
· Lighting: 12 High-Intensity White LEDs
· Storage: Saves to USB Drive
Image sensor | 1/2.7" CMOS |
Image resolution | 8.0 mega pixels |
Lamp | 12pcs white LED( 5600K) |
Cable length | 2.5m |
Power input | 110V~220V |
Screen | 17 inch 4:3 LCD screen. |
