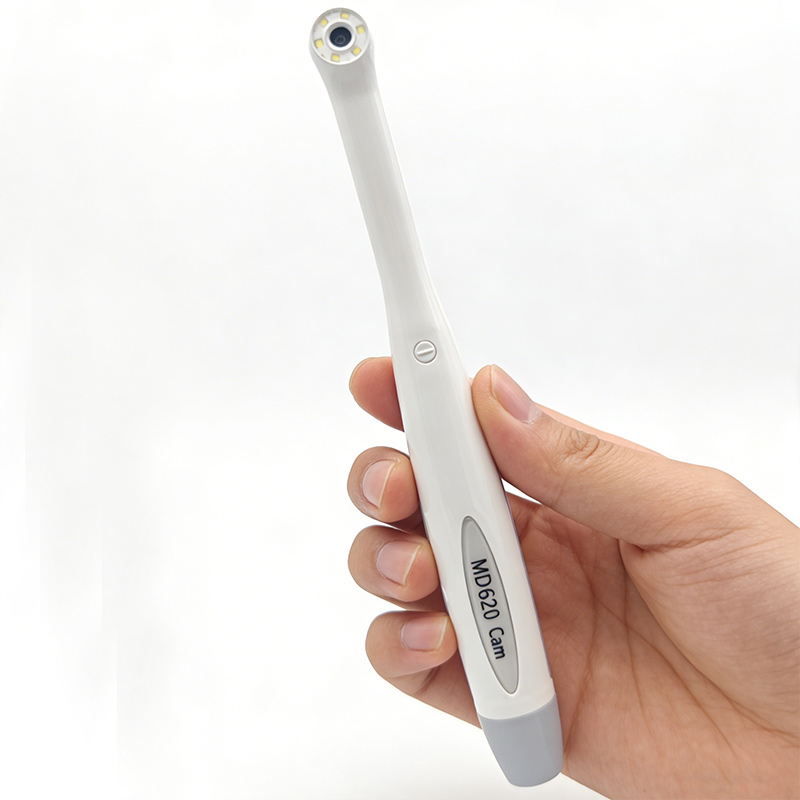

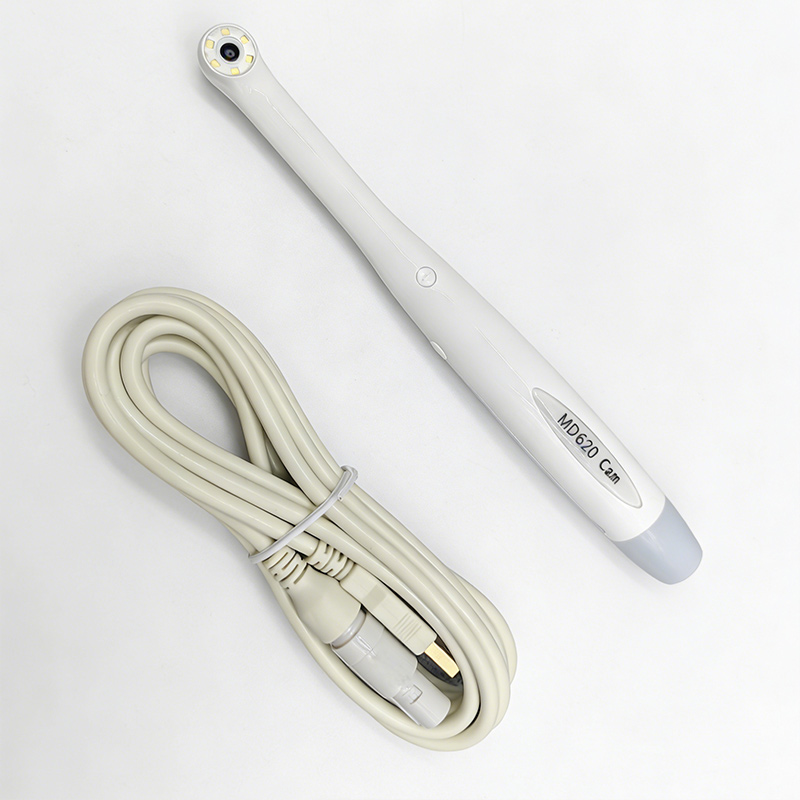

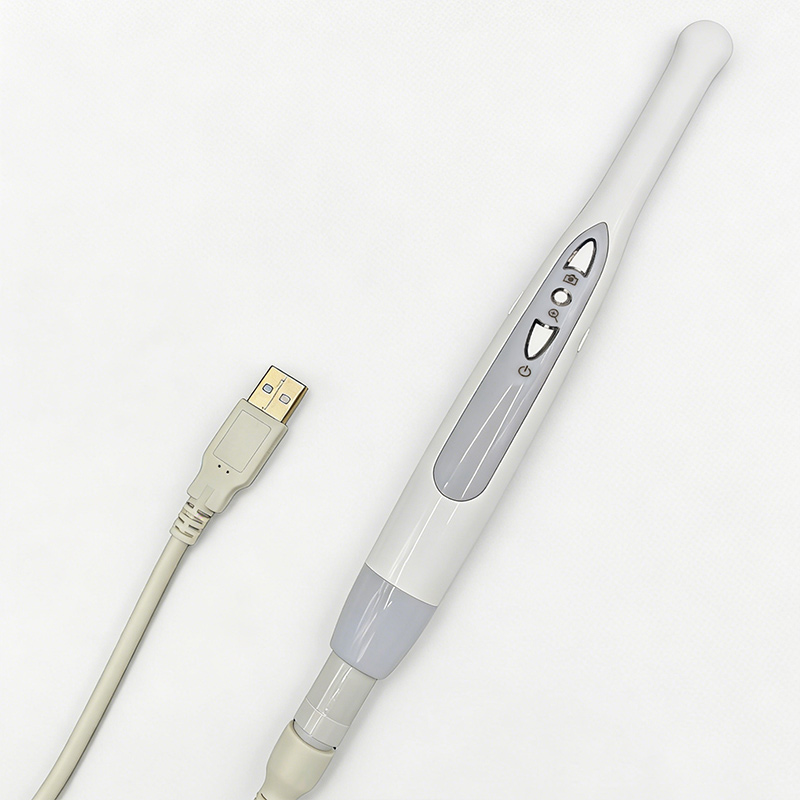

MD620
 |  |
· High-Fidelity Image Capture: Utilizes a 1/3-inch HD CMOS sensor capable of capturing high-dynamic-range images at a resolution of 2592 x 1944 pixels (5 Megapixels), providing exceptional detail for diagnosis, documentation, and patient communication. Video output is standardized at 1280x720 (720p).
· Intelligent Autofocus Optical System: The camera incorporates an advanced autofocus algorithm that continuously and automatically adjusts the lens to maintain optimal focus on the subject. This ensures consistently sharp images without manual intervention, enhancing operational efficiency.
· Sealed Optics for Clinical Durability: The optical path is protected by a permanently sealed lens assembly. This design makes the camera water-resistant, dust-proof, and anti-fogging, crucial for withstand repeated chemical disinfection and the humid intraoral environment. It guarantees image integrity, delivering a "true-to-life" visual representation.
· Professional Software Integration via TWAIN: Beyond standard UVC compatibility for basic use, the camera provides a certified TWAIN driver. This allows it to function as a native image acquisition device within professional dental software suites, enabling direct capture, scaling, and saving of high-resolution images into patient charts without intermediate steps.

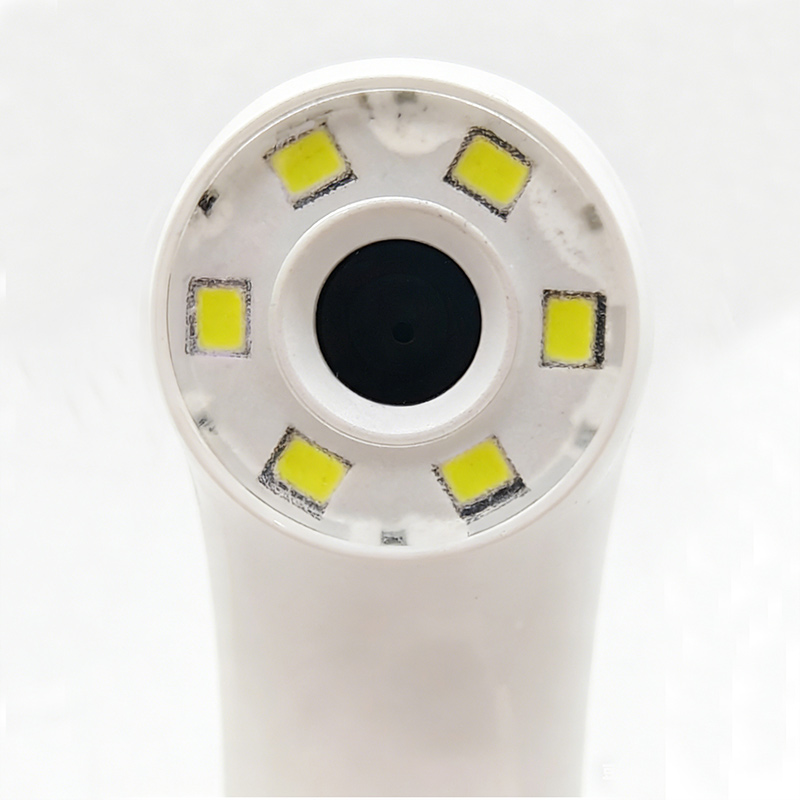

· Optimized Illumination & Field of View: Six high-CRI white LEDs, combined with a specialized optical diffuser, produce uniform, shadow-free brightness across the entire 105-degree ultra-wide field of view. The system includes a 1x to 4x zoom function for detailed inspection of areas of interest.
3.0 Technical Specifications
· Image Sensor: 1/3" Progressive Scan CMOS
· Still Image Resolution: 2592 (H) x 1944 (V) pixels
· Video Output Resolution: 1280 x 720 pixels @ 30fps
· Lens: Fixed, high-quality optical glass; Sealed construction
· Focus: Intelligent Continuous Auto Focus
· Field of View (Diagonal): 105 degrees
· Zoom: 1x - 4x (Digital/Optical, software-controlled)
· Illumination: 6 white LEDs (integrated)
· Environmental Rating: Sealed against moisture, dust, and internal fogging (specific IP rating to be confirmed).
· Interface / Driver: USB 2.0; Supports UVC (Plug & Play) and TWAIN Driver for professional software.
· Power Requirement: DC 5V, supplied via USB bus power.

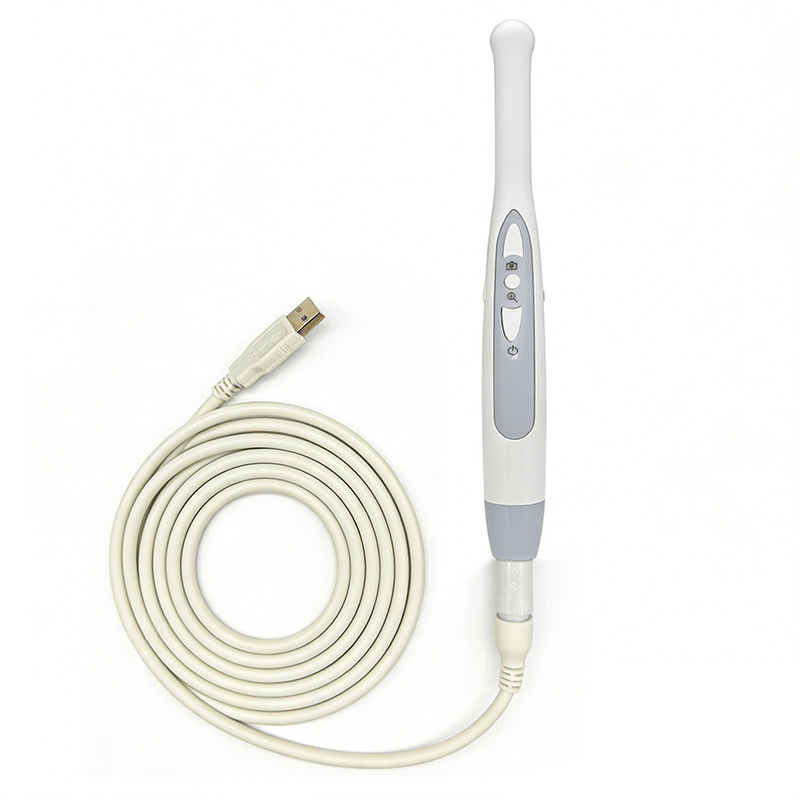

· Cable: Detachable/Integrated, 2.5 meters in length.
· Compatibility: Microsoft Windows XP, Vista, 7, 8, 10, 11 (32-bit & 64-bit editions).
