MD-660 USB Intraoral Camera

Product Overview

This professional USB intraoral camera delivers fluent and crystal-clear visual performance with 1080P resolution at 30 frames per second, ensuring smooth and high-fidelity oral image capture for daily dental examinations and teeth whitening inspections. Adopting a fully sealed lens structure, the device features outstanding waterproof, dustproof and anti-fog capabilities, which can adapt to the humid and complex internal environment of the oral cavity for long-term stable operation.

Equipped with 12 pieces of 5600K high-color-rendering white LED lights, the camera supports flexible brightness adjustment. Users can freely adjust the light intensity to obtain glare-free shooting results without repeatedly drying the tooth surface, perfectly fitting different shooting scenarios. In addition, the lights can be completely turned off to meet professional transillumination detection needs. It supports 1X to 4X digital zoom under 720P resolution, allowing practitioners to magnify and observe subtle oral problems such as tooth stains, tartar and fine gum lesions.

Highly compatible with all mainstream Windows operating systems, including XP, Vista, Win7, Win8, Win10 and Win11, covering both 32-bit and 64-bit versions. Adopting standard UVC and Twain driver protocols, it realizes plug-and-play function with strong system adaptability and convenient operation.

Product Features

• 1080P 30FPS HD resolution high-definition image quality

• With sealed lens,It can be effectively waterproof, dustproof and fogproof.

• Adjustable lighting, Reduce need to dry teeth for glare-free images by adjusting lighting on camera, or to better match capture needs. Turn off lighting for transillumination use cases.

• 1~4X zoom function under 720P

• Work in Windows ,XP , Vista, Win 7,Win 8, Win 10, Win 11(32 bites & 64 bites).

 Technical Specifications

• Image sensor:1/3" HD CMOS

• Available resolution:1920x1080; 1280x720

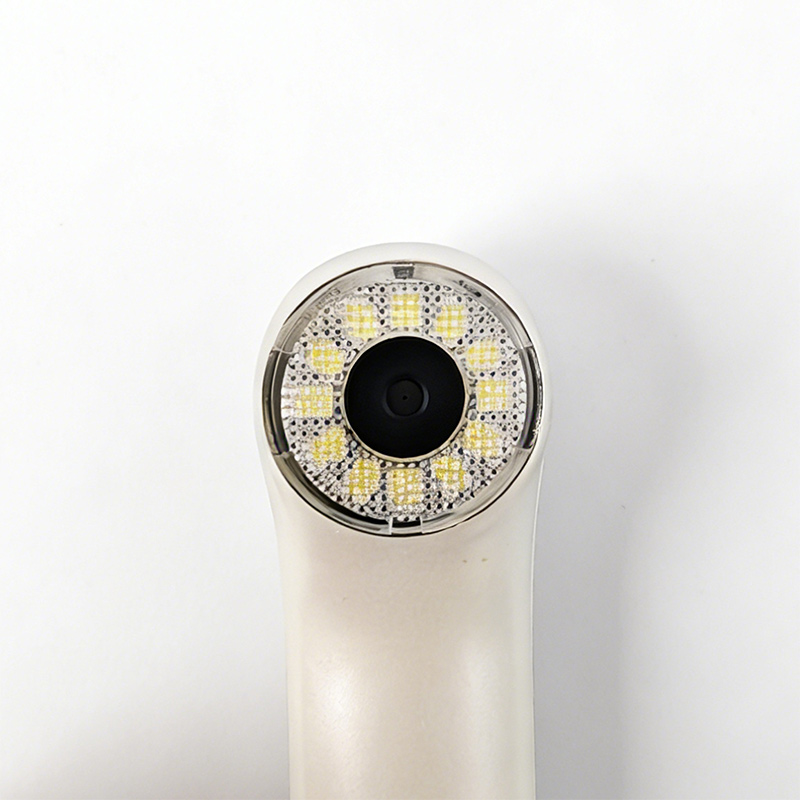

• Lighting System: 12pcs 5600K natural white LED lights with adjustable brightness

• Zoom Range: 1-4X digital zoom (720P mode)

• Intraoral camera Cable length:2.5m

• Driver Type:UVC / Twain

• Body length: 215mm

• Body weight: 62.2g

• Frame Rate: 30FPS smooth video transmission

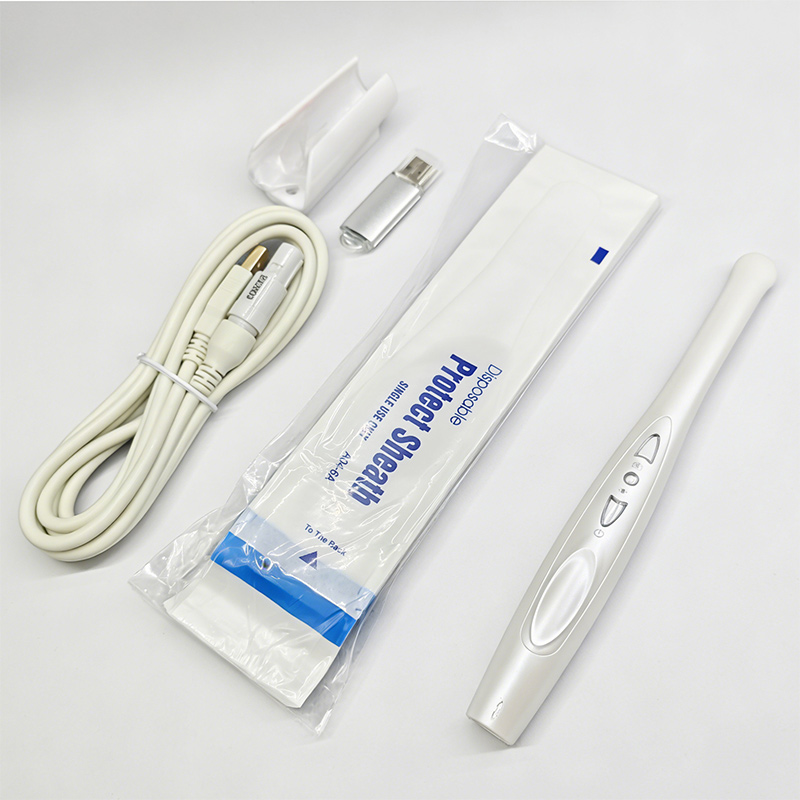

USB dental camera MD-660 Accessories

• Intraoral camera hanpiece: 1 pc;

• Intraoral camera cable: 1pc;

• Intraoral camera holder: 1 pc;

• U disk with driver: 1pc;

• Intraoral camera sheath: 50  pcs.
