YF2200P

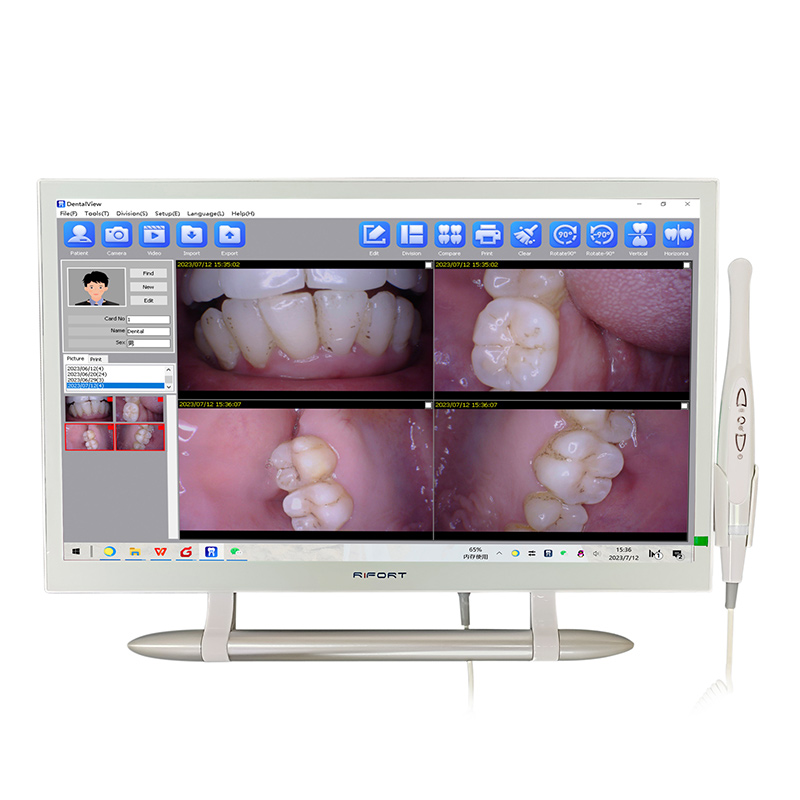

1. 24 inch full HD 1920x1080P LCD monitor
2. Multi-point capacitive touch screen

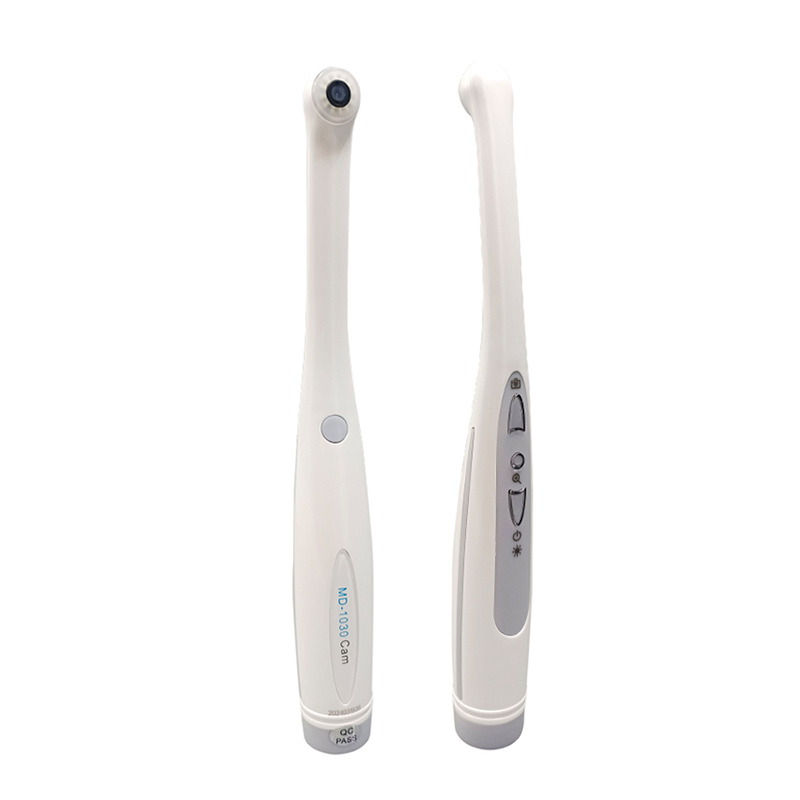

3. With 1080P Full HD intraoral camera，30FPS HD resolution high-definition image quality
4. With sealed lens,It can be effectively waterproof, dustproof and fogproof intraoral camera.
5. Adjustable lighting, Reduce need to dry teeth for glare-free images by adjusting lighting on camera, or to better match capture needs. Turn off lighting for transillumination use cases.
6. 1~4X zoom function under 720P
7. With 256 SSD, Intel 11 quad-core N5095 processor 8G memory
8. Build-in Wireless network card

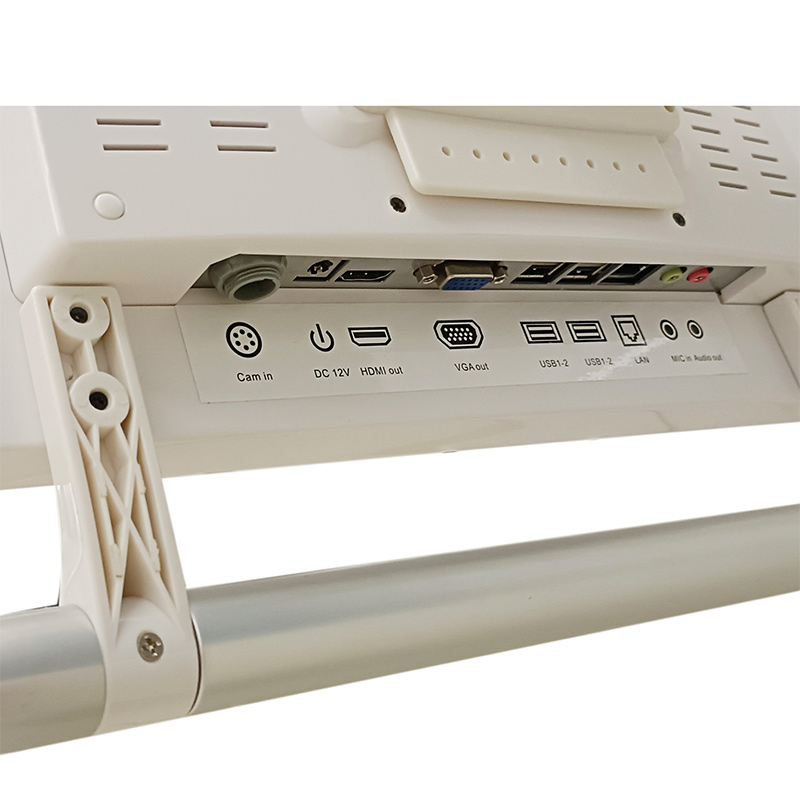

9. With HDMI, VGA output
10. Built-in 2 groups 5W stereo Speakers

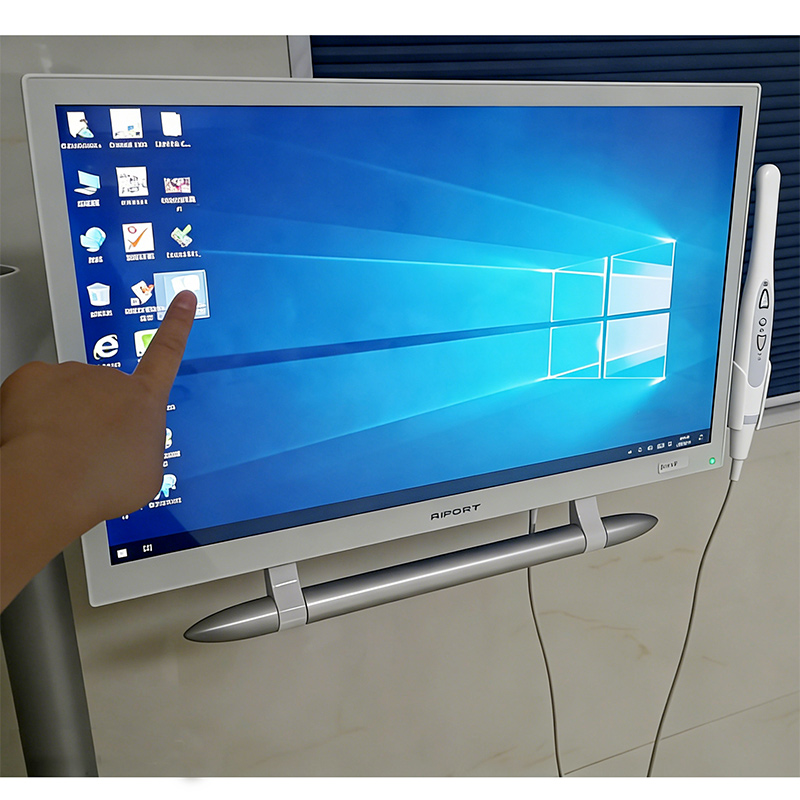

11. Windows 10 system
Medical-Grade Touch Interface & High-Performance Computing: The system is built around a sharp 21.5" Full HD (1920x1080) multi-touch capacitive screen with protective glass. Underneath, an Intel quad-core processor, 4GB RAM, 120GB SSD, and a dedicated NVIDIA GeForce GPU with 2GB VRAM provide the horsepower to smoothly run advanced 3D implant planning, digital smile design, and imaging software without lag, directly at the chairside or in the consultation room.
Dual-Light Diagnostic Camera for Comprehensive Assessment: Integrated directly is a 1080P HD camera featuring both white and blue (405-450nm) LED arrays. Use white light for standard documentation and blue light to induce fluorescence in bacterial plaque and early caries, making them visually prominent for detection, patient education, and monitoring. This turns every examination into a proactive diagnostic session.
CBCT/3D Imaging Ready with Dedicated Graphics: The inclusion of a discrete NVIDIA graphics card is a game-changer. It allows this station to be directly connected to a CBCT or panoramic machine via its abundant ports (HDMI, VGA, 4x USB, LAN). It can effortlessly handle the real-time manipulation and rendering of large 3D DICOM datasets, making it ideal for surgeons and specialists for pre-surgical planning and diagnosis.
Complete, Integrated Professional Workstation: This all-in-one unit eliminates the clutter and compatibility issues of separate components. It runs genuine Windows 11 Pro, includes dual 5W stereo speakers, built-in Wi-Fi/Ethernet, and comes pre-configured to unify clinical examination, radiographic analysis, and patient presentation into a single, streamlined workflow on a protected, easy-to-clean touch surface.
Future-Proof Connectivity & Expansion: Designed for the connected digital practice. The extensive I/O panel (HDMI, VGA, 4x USB, LAN) ensures compatibility with virtually all dental peripherals—from scanners and sensors to additional monitors. Its robust specification guarantees longevity and performance headroom for evolving software demands.
Computing Core: Intel Quad-Core PC with 4GB RAM, 120GB SSD, NVIDIA GPU (2GB VRAM), Windows 11 Pro
Display: 21.5" Full HD Multi-Touch Capacitive Screen with Protective Glass
Imaging: Integrated 1080P Dual-Light (White/Blue) Diagnostic Camera
Graphics Power: Dedicated NVIDIA Graphics for 3D/CBCT Image Processing
Connectivity: HDMI, VGA, 4x USB, Gigabit LAN, Wi-Fi, Stereo Speakers
Use Case: Primary workstation for 3D imaging diagnosis, treatment planning, and advanced patient consultation.
Image sensor | 1/3" HD CMOS |
Image resolution | 1920x1080/1280x720 pixels |
Lamp | 12pcs white LED( 5600K) |
Intraoral camera Cable length | 2.5m |
Driver Type | UVC / Twain |
